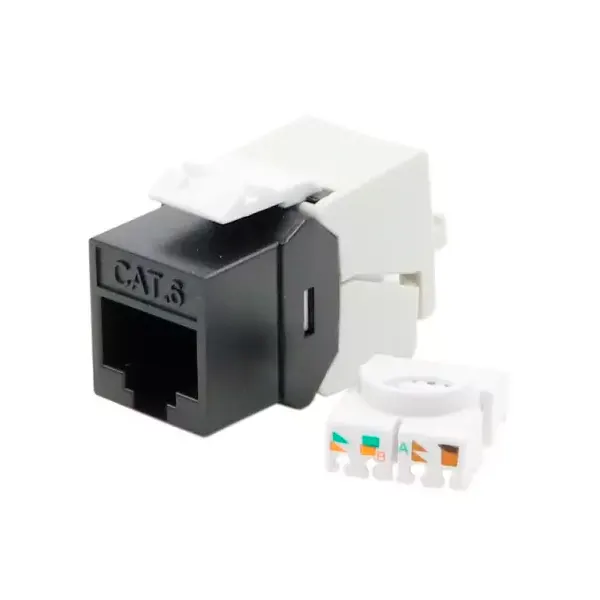

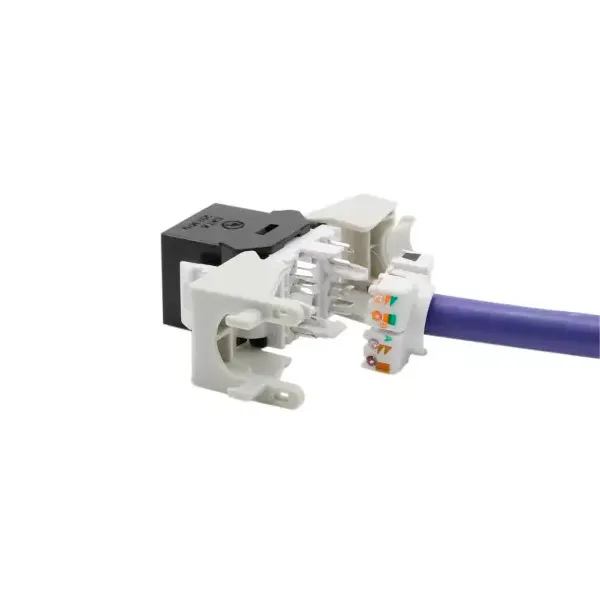

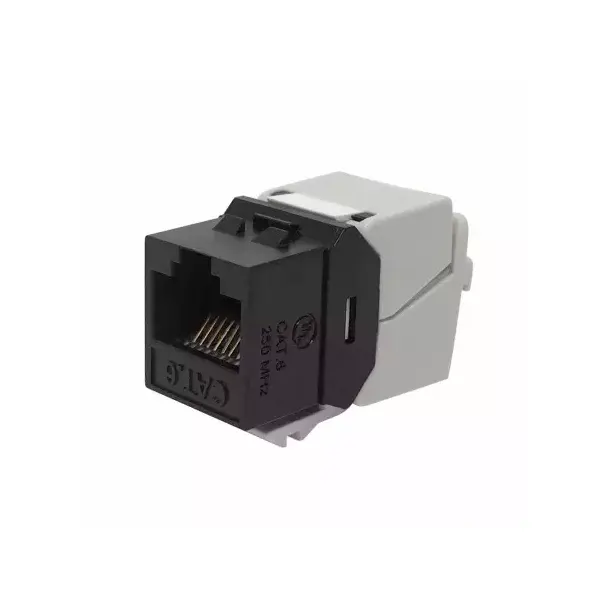

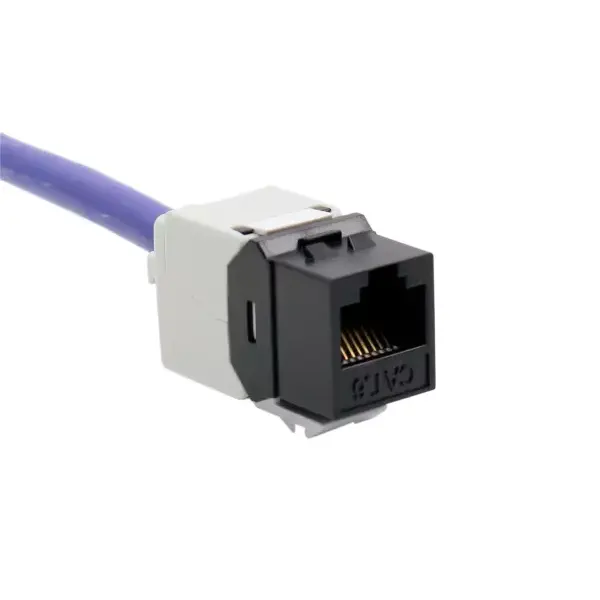

Cat 6 UTP Keystone Jack
E.Con Category 6 keystone jacks are RJ45 8P 8C 50u jacks suitable for 22-26 AWG stranded and solid wire, compatible with both 110 & Krone punch-down tools.
- RJ45 8P 8C 50u” Jack
- Terminating 4 pairs, 23-26 AWG cable
- Fitting 1U 24 port High-Density
Description
SPECIFICATIONS
| RJ45 8P 8C 50u” Jack |
| Terminating 4 pairs, 23-26 AWG cable |
| Universal labels color-coded for T568A and T568B wiring schemes |
| Fitting 1U 24 port High-Density |
| Keystone panel |
| 3P/ETL verified unshielded EIA/TIA connecting hardware |
TECHNICAL SPECIFICATIONS
| Identification
|
I.D. Plate: PVC. Transparent color Paper Panel: SPCC. 1.5 mm thickness with Black (RAL 9005) color painted |
| RJ45 Jack | Housing: ABS, UL 94V-0 Contact Bracket: PC, UL 94V-2. Transparent color |
| RJ45 Jack Contact | Material: Phosphor Bronze with Nickel plated Finish: 50 micro-inch Gold plated on Plug Contact area |
|
IDC |
Housing: PC+Glass Fiber, UL 94V-2 Terminal: Phosphor Bronze with Tin plated Jack Bracket Set: ABS, UL 94V-0 Support Bar: SPCC, 1.5 mm thickness with Black (RAL 9005) color painted PCB: FR4, UL 94V-0 |
