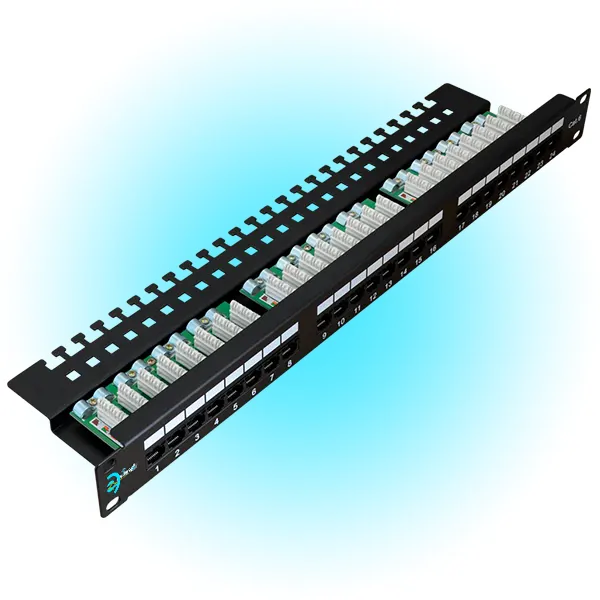

Cat 06 UTP Patch Panel
Con CAT.6 24 Port Patch Panels are the industry’s highest-quality panels that support the latest technologies and diverse applications. These panels combine strength and durability with a sleek look, making them ideal for all kinds of environments. These comply with ANSI/TIA-56-.2, ISO/IEC 11801, and EN 50173-1 Class E specifications. The complete module complies with the EU RoHS directive. The construction is standard 19″ size and suits all 19″ rack installations.
Description
FEATURES
| High-density 24 port 1U patch panel |
| UTP Snap-in Type |
| Six Port RJ45 modules applied |
| Suitable for Cat.6 UTP Keystone Jacks |
| Integral plastic cable management |
| Modern design and simplicity of mounting |
SPECIFICATIONS
| Thickness of cold-rolled steel: 1.5mm |
| Operating Temperature Range: -60℃ to 80℃ |
| IDC Accept: 22-26 AWG |
| Wire Scheme: T568A/B |
| Insulation Resistance: 500Ω |
| Current Rating: 1.5Amps |
| DC Resistance: 0.1-ohm MAX |
| Voltage: 150 VAC MAX |
| Plug Retention Force: 89N |
| Spring Wire: Phosphor Bronze with Gold-plated 3u-50u |
| IDC Contact: Phosphor Bronze |
| Specifically, Design: With Two PCB Panel & Tool-less |
| Insertion life: ≥1000 mating cycles |
| Plug /Jack Contact Force: 100g min |
| Humidity: 5 to 93% (non-condensing) |
APPLICATIONS
| 1000 Base – TX Gigabit Ethernet |
| 1000 Base – T Gigabit Ethernet |
| 100 Base – TX Fast Ethernet |
| 10 Base-T Ethernet |
| Voice, Video and other applications |
| Standard Size for mounting in 19” Racks and Cabinets |
ORDERING INFORMATION
| Part No. | Description |
| ECON6UPP-24 | CAT.6 Unshielded 24 Port Patch Panel |
